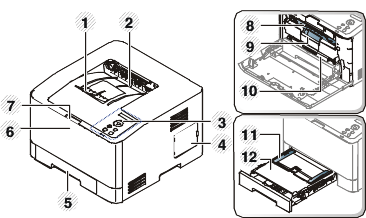

CLP-41xN Series/CLP-41xNW Series |
---|
![]() |
1 |
Output support |
7 |
Front cover release button |
2 |
Output tray |
8 |
Toner cartridges |
3 |
Control panel |
9 |
Toner cartridge handle |
4 |
Control board cover |
10 |
Intermediate Transfer Belt (ITB) |
5 |
Tray 1 |
11 |
Paper width guides on a manual feeder |
6 |
Front cover |
12 |
Manual feeder |

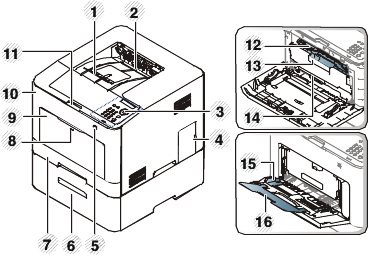

CLP-68xND Series/ CLP-68xDW Series |
---|
![]() |
1 |
Output support |
9 |
Multi-purpose tray |
2 |
Output tray |
10 |
Front cover |
3 |
Control panel |
11 |
Front cover release button |
4 |
Control board cover |
12 |
Toner cartridges |
5 |
USB memory port |
13 |
Toner cartridge handle |
6 |
Optional tray[a] |
14 |
Intermediate Transfer Belt (ITB) |
7 |
Tray 1 |
15 |
Paper width guides on a multi-purpose tray |
8 |
Push-release of Multi-purpose tray |
16 |
Multi-purpose support tray |
[a] This is an optional feature. CLP-68xND Series/CLP-68xDW Series only. |
![]() |
|
|

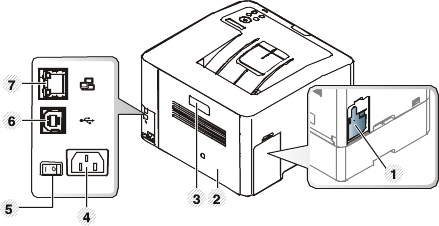

CLP-41xN Series/CLP-41xNW Series |

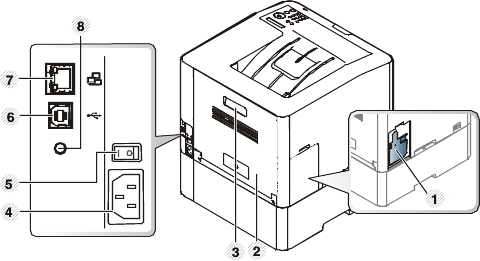

CLP-68xND Series/ CLP-68xDW Series |
---|---|
![]() |
![]() |
1 |
Waster toner container |
5 |
Power-switch |
2 |
Rear cover |
6 |
USB port[a] |
3 |
Rear cover handle |
7 |
Network port |
4 |
Power receptacle |
8 |
|
[a] The optional IEEE 1284B parallel connector can be used by plugging in both the USB port and the 5V output port. [b] This is an optional feature. CLP-68xND Series/CLP-68xDW Series only. |
