Wireless network setup

[Note]

  • Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see Features by models).

  • If the IPv6 network seems to not be working, set all the network settings to the factory defaults and try again using Clear Setting.

Getting started

Understanding your network type

Typically, you can only have one connection between your computer and the machine at a time.

Infrastructure mode

This is an environment generally used for homes and SOHOs (Small Office/ Home Office). This mode uses an access point to communicate with the wireless machine.

Ad hoc mode

This mode does not use an access point. The wireless computer and wireless machine communicate directly.

Wireless network name and Network Password

Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Password are created for the network. Ask your network administrator about this information before proceeding with the machine installation.

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

[Note]

Some wireless network installation types may not be available depending on the model or country.

Set up method

Connecting method

Description & Reference

With Access Point

From the computer

Windows user, see Access point via USB cable.

Windows user, see Access point without a USB cable (recommended).

See Using a network cable.

From the machine’s control panel

See Using the menu button.

Without Access Point

From the computer

Windows user, see Ad hoc via USB cable.

Mac user, see Ad hoc via USB cable.

Wi-Fi Direct setup

See Setting up Wi-Fi Direct.
[Note]

  • If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see Troubleshooting).

  • It is strongly recommended that you set the password on Access Points. If you do not set the password on Access Points, they might be exposed to illegal access from unknown machines including PCs, smart phones and printers. Refer to the Access Point user' guide for password settings.

Using the WPS button

If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily configure the wireless network settings by pressing the (WPS) button on the control panel without a computer.

[Note]

  • If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) button or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.

  • When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using.

Items to prepare

  • Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).

  • Check if your machine supports Wi-Fi Protected Setup™ (WPS).

  • Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network using the (WPS) button on the control panel.

The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing both the (WPS) button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.

The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment.

[Note]

You can change the WPS mode in control panel ( (Menu) > Network > Wireless > OK > WPS Setting).

Machines with a display screen

Connecting in PBC mode

  1. Press and hold the (WPS) button on the control panel for more than 2 seconds.

    The machine starts waiting for up to two minutes until you press the WPS (PBC) button on the access point (or wireless router).

  2. Press the WPS (PBC) button on the access point (or wireless router).

    The messages are displayed on the display screen in the order below:

    1. Connecting: The machine is connecting to the access point (or wireless router).

    2. Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.

    3. AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display.

  3. Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection.

Connecting in PIN mode

  1. Press and hold the (WPS) button on the control panel for more than 2 seconds.

  2. The eight-digit PIN appears on the display.

    You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).

    The messages are displayed on the display screen in the order below:

    1. Connecting: The machine is connecting to the wireless network.

    2. Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.

    3. SSID Type: After completing the wireless network connection process, the AP’s SSID information is displayed on the LCD display.

  3. Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select Network (Ethernet/Wireless) connection.

Machines without a display screen

Connecting in PBC mode

  1. Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.

    The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).

  2. Press the WPS (PBC) button on the access point (or wireless router).

    1. The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).

    2. When the machine is successfully connected to the wireless network, the WPS LED light stays on.

  3. Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection.

Connecting in PIN mode

  1. The network configuration report, including PIN, must be printed (see Printing a network configuration report).

    In ready mode, press and hold the (Cancel or Stop/Clear) button on the control panel for about 5 seconds. You can find your machine’s PIN.

  2. Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.

    The machine starts connecting to the access point (or wireless router).

  3. You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).

    The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.

    The WPS LED blinks in the order below:

    1. The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).

    2. When the machine is successfully connected to the wireless network, the WPS LED light stays on.

  4. Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection.

Re-connecting to a network

When the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address.

[Note]

In the following cases, the machine automatically re-connects to the wireless network:

  • The machine is turned off and on again.

  • The access point (or wireless router) is turned off and on again.

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to the wireless network, press and release the (Cancel or Stop/Clear) on the control panel. You need to wait 2 minutes to re-connect to the wireless network.

Disconnecting from a network

To disconnect the wireless network connection, press the (WPS) button on the control panel for more than two seconds.

  • When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off.

  • When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off.

Using the menu button

[Note]

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see Menu overview).

Before starting, you will need to know the network name (SSID) of your wireless network and the Network Password if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

[Note]

After completing the wireless network connection, you need to install a machine driver to print from an application (see Installing driver over the network).

  1. Press the (Menu) button on the control panel.

  2. Press Network > Wireless > WLAN Settings.

  3. Press the OK to select the setup method you want.

    • Wizard (recommended): In this mode, the setup is automatic. The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.

    • Custom: In this mode, users can give or edit manually their own SSID , or choose the security option in detail.

Setup using Windows

[Note]

Shortcut to the Samsung Easy Wireless Setup program without the CD: If you have installed the printer driver once, you can access the Samsung Easy Wireless Setup program without the CD (see Accessing management tools).

Access point via USB cable

Items to prepare

  • Access point

  • Network-connected computer

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  • USB cable

Creating the infrastructure network

  1. Check wheter the USB cable is connected to the machine.

  2. Turn on your computer, access point, and machine.

  3. Insert the supplied software CD into your CD-ROM drive.

    If the installation window does not appear, click Start > All programs > Accessories > Run.

    X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.

  4. Review and accept the installation agreements in the installation window. Then, click Next.

  5. Select Wireless network connection on the Printer Connection Type screen. Then, click Next.

  6. On the Are you setting up your printer for the first time? screen, select Yes, I will set up my printer's wireless network. Then, click Next.

    If your printer is already connected on the network, select No, my printer is already connected to my network.

  7. After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

    [Note]

    If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.

    • Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).

    • Operation Mode: Select Infrastructure.

    • Authentication: Select an authentication type.

      Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

      Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

      WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.

    • Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES, TKIP AES).

    • Network Password: Enter the encryption network password value.

    • Confirm Network Password: Confirm the encryption network password value.

    • WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.
    [Note]

    The wireless network security window appears when the access point has security settings.

    Enter the Network Password of the access point (or router).

  8. If your printer supports Wi-Fi Direct and this function is disabled, its corresponding screen will appears.

    If you want to enable Wi-Fi Direct, check the checkbox, and click Next. If not, click just Next. Next.

    [Note]

    • Wi-Fi Direct option appears on the screen only if your printer supports this feature.

    • Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see Setting up Wi-Fi Direct).

    • Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 23 characters.

    • Password setting is the numeric string, and the size is 8 ~ 64 characters.

  9. When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.

  10. Follow the instructions in the installation window.

Access point without a USB cable (recommended)

Items to prepare

  • WiFi-enabled PC running Windows 7 or higher and an access point (router)

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

[Note]

While setting the wireless network, the machine uses PC's wireless LAN. You might not be able to connect to the Internet.

Creating the infrastructure network

  1. Turn on your computer, access point, and machine.

  2. Insert the supplied software CD into your CD-ROM drive.

    If the installation window does not appear, click Start > All programs > Accessories > Run.

    X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.

  3. Review and accept the installation agreements in the installation window. Then, click Next.

  4. Select Wireless network connection on the Printer Connection Type screen. Then, click Next.

  5. On the Are you setting up your printer for the first time? screen, select Yes, I will set up my printer's wireless network. Then, click Next.

    If your printer is already connected on the network, select No, my printer is already connected to my network.

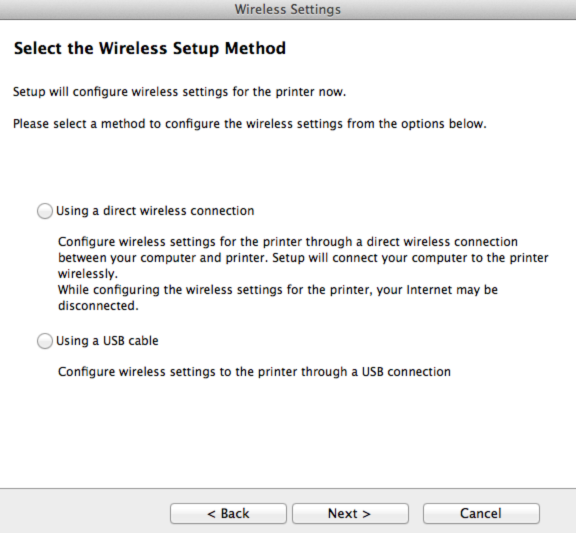

  6. Select Using a direct wireless connection on the Select the Wireless Setup Method screen. Then, click Next.

    [Note]

    Even if your computer is running Windows 7 or higher, you cannot use this feature if your PC does not support wireless network. Set the wireless network using a USB cable (see Access point via USB cable).

    If below screen appears, press the (WPS) button from the control panel within 2 minutes.

  7. When the wireless network set up is completed, click Next.

  8. Follow the instructions in the installation window.

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad-hoc wireless network by following the simple steps below.

Items to prepare

  • Network-connected computer

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  • USB cable

Creating the ad hoc network in Windows

  1. Turn on your computer and the wireless network machine.

  2. Insert the supplied software CD into your CD-ROM drive.

    If the installation window does not appear, click Start > All programs > Accessories > Run.

    X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.

  3. Review and accept the installation agreements in the installation window. Then, click Next.

  4. Select Wireless network connection on the Printer Connection Type screen. Then, click Next.

  5. On the Are you setting up your printer for the first time? screen, select Yes, I will set up my printer's wireless network. Then, click Next.

    If your printer is already connected on the network, select No, my printer is already connected to my network.

  6. After searching the wireless networks, a list of wireless networks your machine has searched appears. Click Advanced Setting.

    [Note]

    • Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).

    • Operation Mode: Select ad hoc.

    • Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).

    • Authentication: Select an authentication type.

      Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

      Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

    • Encryption: Select the encryption (None, WEP64, WEP128).

    • Network Password: Enter the encryption network password value.

    • Confirm Network Password: Confirm the encryption network password value.

    • WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

    The wireless network security window appears when the ad hoc network has security enabled.

    Select Open System or Shared Key for the authentication and click Next.

    • WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

  7. The window showing the wireless network setting appears. Check the settings and click Next.

    [Note]

    Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.

    If your computer is set to DHCP and you want to use the Static wireless network setting, you must contact the network administrator to get the static IP address.

    • For the DHCP method

      If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

    • For the Static method

      If the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.

      For example,

      If the computer’s network information is as shown follows:

      • IP address: 169.254.133.42

      • Subnet Mask: 255.255.0.0

      Then, the machine’s network information should be as below:

      • IP address: 169.254.133.43

      • Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

      • Gateway: 169.254.133.1

  8. The Wireless Network Setting Complete window appears. Click Next.

  9. When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next.

  10. Follow the instructions in the installation window.

Setup using Mac

Access point via USB cable

Items to prepare

  • Access point

  • Network-connected printer

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  • USB cable

  1. Make sure that the machine is connected to your computer andpowered on.

  2. Insert the supplied software CD into your CD-ROM drive.

  3. Double-click the CD-ROM icon that appears on your Mac desktop.

    • For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.

  4. Double-click the MAC_Installer folder > Installer OS X icon.

  5. Click Continue.

  6. Read the license agreement and click Continue.

  7. Click Agree to agree to the license agreement.

  8. Click Install. All components necessary for machine operations will be installed.

    If you click Customize, you can choose individual components to install.

  9. Enter the password and click OK.

  10. Select Configuration of Wireless network on the Printer Connection Type and click Continue.

  11. If Wireless Settings screen appears, select Using a USB cable and click Next.

    If the screen does not appear, go to step 15.

  12. After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

    [Note]

    When you set the wireless configuration manually, click Advanced Setting.

    • Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).

    • Operation Mode: Select Infrastructure.

    • Authentication: Select an authentication type.

      Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

      Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

      WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.

    • Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP, AES)

    • Network Password: Enter the encryption network password value.

    • Confirm Network Password: Confirm the encryption network password value.

    • WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

    The wireless network security window appears when the access point has security enabled.

    Enter the Network Password of the access point (or router).

  13. The window showing the wireless network setting appears. Check the settings and click Next.

    [Note]

    • Wi-Fi Direct option appears on the screen only if your printer supports this feature.

    • Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see Setting up Wi-Fi Direct).

    • Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.

    • Password setting is the numeric string, and the size is 8 ~ 64 characters.

  14. The Wireless Network Setting Complete window appears. Click Next.

  15. When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next.

Access point without a USB cable (recommended)

Items to prepare

  • WiFi-enabled Mac running Mac OS 10.7 or higher and an access point (router)

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  1. Make sure that the machine is connected to your computer andpowered on.

  2. Insert the supplied software CD into your CD-ROM drive.

  3. Double-click the CD-ROM icon that appears on your Mac desktop.

    • For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.

  4. Double-click the MAC_Installer folder > Installer OS X icon.

  5. Click Continue.

  6. Read the license agreement and click Continue.

  7. Click Agree to agree to the license agreement.

  8. Click Install. All components necessary for machine operations will be installed.

    If you click Customize, you can choose individual components to install.

  9. Enter the password and click OK.

  10. Select Configuration of Wireless network on the Printer Connection Type and click Continue.

  11. If Wireless Settings screen appears, select Using a direct wireless connection and click Next.

    If the screen does not appear, go to step 13.

    [Note]

    If below screen appears, press the (WPS) button from the control panel within 2 minutes.

  12. When the wireless network set up is completed, click Next.

  13. After the installation is finished, click Close.

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad hoc wireless network by following these simple directions.

Items to prepare

  • Network-connected computer

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  • USB cable

Creating the ad hoc network in Mac

  1. Make sure that the machine is connected to your computer andpowered on.

  2. Insert the supplied software CD into your CD-ROM drive.

  3. Double-click the CD-ROM icon that appears on your Mac desktop.

    • For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.

  4. Double-click the MAC_Installer folder > Installer OS X icon.

  5. Click Continue.

  6. Read the license agreement and click Continue.

  7. Click Agree to agree to the license agreement.

  8. Click Install. All components necessary for machine operations will be installed.

    If you click Customize, you can choose individual components to install.

  9. Enter the password and click OK.

  10. Select Configuration of Wireless network on the Printer Connection Type and click Continue.

  11. After searching the wireless networks, a list of wireless networks your machine has searched appears. Click Advanced Setting.

    [Note]

    • Enter the wireless Network Name: Enter the SSID name (SSID is case-sensitive).

    • Operation Mode: Select ad hoc.

    • Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).

    • Authentication: Select an authentication type.

      Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

      Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

    • Encryption: Select the encryption (None, WEP64, WEP128).

    • Network Password: Enter the encryption network password value.

    • Confirm Network Password: Confirm the encryption network password value.

    • WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

    The wireless network security window appears when the ad hoc network has security setting.

    Select Open System or Shared Key for the authentication and click Next.

    • WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

  12. The window showing the wireless network settings appears. Check the settings and click Next.

    [Note]

    Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.

    If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.

    • For the DHCP method

      If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

    • For the Static method

      If the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.

      For example,

      If the computer’s network information is shown as follows:

      • IP address: 169.254.133.42

      • Subnet Mask: 255.255.0.0

      Then, the machine’s network information should be as shown below:

      • IP address: 169.254.133.43

      • Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

      • Gateway: 169.254.133.1

  13. When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next..

    If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.

  14. The wireless network connects according to the network configuration.

  15. Wireless network set up is completed. After installation is finished, click Quit.

    [Note]

    After completing the wireless network connection, you need to install a machine driver to print from an application (see Installation for Mac).

Using a network cable

[Note]

Machines that do not support the network port will not be able to use this feature (see Rear view).

Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

[Note]

  • After completing the wireless network connection, you need to install a machine driver to print from an application (see Installing driver over the network).

  • See your network administrator, or the person that set up your wireless network, for information about your network configuration.

Items to prepare

  • Access point

  • Network-connected computer

  • Software CD that was provided with your machine

  • A machine installed with a wireless network interface

  • Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network configuration report.

See Printing a network configuration report.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.

See Setting IP address.

Configuring the machine’s wireless network

Before starting you will need to know the network name (SSID) of your wireless network and the Network Password if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection status.

  1. Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.

  2. Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.

    For example,

  3. Click Login on the upper right of the SyncThru™ Web Service website.

  4. Type in the ID and Password then click Login.

    • ID: admin

    • Password:  sec00000

  5. When the SyncThru™ Web Service window opens, click Network Settings.

  6. Click Wireless > Wizard.

    [Note]

    Wizard will help you setup the wireless network configuration. However, if you want to set the wireless network directly, select Custom.

  7. Select the one Network Name(SSID) in the list.

    • SSID: SSID (Service Set Identifier) is a name that identifies a wireless network, access points, and wireless devices attempting to connect to a specific wireless network must use the same SSID. The SSID is case sensitive.

    • Operation Mode: Operation Mode refers to the type of wireless connections (see Wireless network name and Network Password).

      • Ad-hoc: Allows wireless devices to communicate directly with each other in a peer-to-peer environment.

      • Infrastructure: Allows wireless devices to communicate with each other through an access point.

    [Note]

    If your network’s Operation Mode is Infrastructure, select the SSID of the access point. If the Operation Mode is Ad-hoc, select the machine’s SSID. Note that “portthru” is the default SSID of your machine.

  8. Click Next.

    If the wireless security setting window appears, enter the registered password (Network Password) and click Next.

  9. The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.

    [Caution]

    Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network. In case of Ad-hoc mode, you can use a wireless LAN and wired LAN simultaneously.

  10. Insert the supplied CD into the CD-ROM drive and proceed to install the software following the directions on the screen. When the "Connect Printer" screen appears, select the Network (Ethernet/Wireless) connection.

Turning the Wi-Fi network on/off

[Note]

If your machine has a display, you can also turn on/off the Wi-Fi from the machine’s control panel using the Network menu.

  1. Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.

  2. Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.

    For example,

  3. Click Login on the upper right of the SyncThru™ Web Service website.

  4. Type in the ID and Password, then click Login.

    • ID: admin

    • Password: sec00000

  5. When the SyncThru™ Web Service window opens, click Network Settings.

  6. Click Wireless > Custom.

    You can also turn the Wi-Fi network on/off.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connecting between method for your between a printer and mobile device that supports Wi-Fi Direct that provides a secure connection and better throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point, You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.

[Note]

  • You cannot connect to the internet through the mobile device in use Wi-Fi Direct.

  • The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.

  • Up to four mobile devices can connect to Wi-Fi Direct at one time.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the USB cable-connected computer(recommended)

  • After the driver installation is complete, Samsung Easy Printer Manager can be set and changes in the Wi-Fi Direct can be made.

    [Note]

    Samsung Easy Printer Manager is Available for Windowsand Mac OS users only.

    • From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.

      • Wi-Fi Direct On/Off: Select On to enable.

      • Device Name: Enter the printer’s name for searching for your printer on a wireless network. By default, the device name is the model name.

      • IP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1 )

      • Group Owner: Activate this option to assign the printer the Wi-Fi Direct group’s owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.

      • Network Password: If your printer is a Group Owner, a Network Password is required for other mobile devices to connect to your printer. You can configure a Network Password yourself, or can remember the given Network Password that is randomly generated by default.

From the machine (Machines with a display screen)

  • Select Network > Wireless > Wi-Fi Direct from the control panel.

  • Enable Wi-Fi Direct.

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.

  • Access SyncThru™ Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.

  • Enable or disable Wi-Fi Direct and set other options.

[Note]

  • For Linux OS users,

    • Print an IP network configuration report to check the output (see Printing a network configuration report).

    • Access SyncThru Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.

    • Enable or disable Wi-Fi Direct.

Setting up the mobile device

  • After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.

  • After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile printer) to print from your smartphone.

[Note]

  • When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the WPS button on the printer and it will be connected to your mobile device.

  • If your mobile device does not support WPS, you need to enter the "Network Password" of a printer instead of pushing the WPS button.

What is Samsung Mobile Print?

Samsung Mobile Print is a free application that enables users to print photos, documents, and web pages directly from your smartphone or tablet. Samsung Mobile Print is not only compatible with your Android and iOS smart phones but also with your iPod Touch and tablet PC. It connects your mobile device to a network connected Samsung printer or to a wireless printer through a Wi-Fi access point. Installing a new driver or configuring network settings isn’t necessary – just simply install the Samsung Mobile Print application, and it will automatically detect compatible Samsung printers. Besides printing photos, web pages, and PDFs, scanning is also supported. If you have Samsung multfunction printer, scan any document into a JPG, PDF, or PNG format for quick and easy viewing on your mobile device.

Downloading Samsung Mobile Print

To download Samsung Mobile Print, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for “Samsung Mobile Print.” You can also visit iTunes for Apple devices on your computer.

Supported Mobile OS

  • Android OS 2.1 or higher

  • iOS 4.0 or higher

Supported devices

  • iOS 4.0 or higher: iPod Touch, iPhone, iPad

  • Android 2.1 or higher: Galaxy series and Android mobile device

Troubleshooting

Problems during setup or driver installation

Printers Not Found

  • Your machine may not be turned on. Turn on your computer and the machine.

  • USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.

  • The machine does not support wireless networking. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.

Connecting Failure - SSID Not Found

  • The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again.

  • Your access point is not turned on. Turn on your access point.

Connecting Failure - Invalid Security

  • Security is not configured correctly. Check the configured security on your access point and machine.

Connecting Failure - General Connection Error

  • Your computer is not receiving a signal from your machine. Check the USB cable and your machine’s power.

Connecting Failure - Connected Wired Network

  • Your machine is connected with a wired network cable. Remove the wired network cable from your machine.

PC Connection Error

  • The configured network address is unable to connect between your computer and machine.

    • For a DHCP network environment

      The receives the IP address automatically (DHCP) when computer is configured to DHCP.

    • For a Static network environment

      The machine uses the static address when the computer is configured to static address.

      For example,

      If the computer’s network information is as shown below:

      • IP address: 169.254.133.42

      • Subnet Mask: 255.255.0.0

      Then the machine’s network information should be as below:

      • IP address: 169.254.133.43

      • Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

      • Gateway: 169.254.133.1

Other problems

If problems occur while using the machine on a network, check the following:

[Note]

For information on the access point (or wireless router), refer to its own user's guide.

  • Your computer, access point (or wireless router), or machine may not be turned on.

  • Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal.

  • Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.

  • Check whether firewall software (V3 or Norton) is blocking the communication.

    If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.

  • Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.

  • Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.

  • Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.

    Register the product's MAC address when you confogure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report (see Printing a network configuration report).

  • Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).

  • This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.

  • When using the ad hoc mode, in operating systems such as Windows Vista, you might need to set the wireless connection setting every time you use the wireless machine.

  • You cannot use infrastructure mode and ad hoc mode at the same time for Samsung wireless network machines.

  • The machine is within the range of the wireless network.

  • The machine is located away from obstacles that could block the wireless signal.

    Remove any large metal objects between the access point (or wireless router) and the machine.

    Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.

  • The machine is located away from other electronic devices that may interfere with the wireless signal.

    Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.

  • Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.

  • If Wi-Fi Direct is ON, this machine only supports IEEE 802.11 b/g.

  • If the access point is set to work with the 802.11n standard only, it may notconnect to your machine.
