Using a USB memory device

This chapter explains how to use a USB memory device with your machine.

This chapter includes:

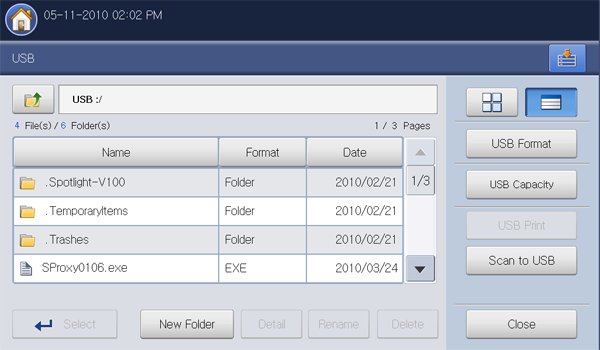

Understanding the USB screen

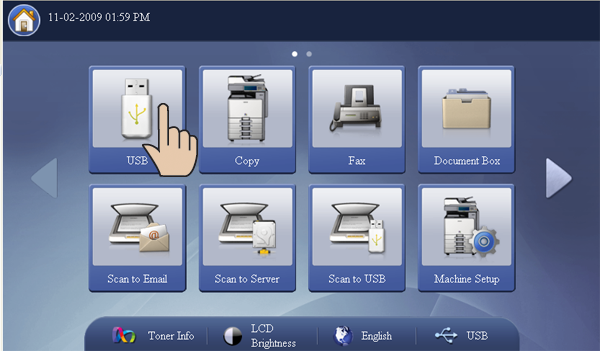

To use the USB feature, press USB on the display screen.

[Note]

If you want to use this feature, you need to insert a USB memory device into the USB memory port on your machine.

  •  Moves back to the upper level.

  • Select: Moves to the selected folder.

  • New Folder: Makes a new folder in the USB memory device.

  • Detail: Displays information of the selected folder or file.

  • Rename: Changes the name of the selected folder or file.

  • Delete: Deletes the selected folder or file.

  •  You can choose the layout for viewing the folder structure in folder view or list view.

  • USB Format: Formats the USB memory device.

  • USB Capacity: Displays the USB memory status.

  • USB Print: You can directly print files stored on a USB memory device. You can print TIFF, JPEG, PDF, and PRN files (see Printing from a USB memory device).

  • Scan to USB: Sends you Scan to USB (see Scanning originals and sending to a USB memory device (scan to USB)).

About USB memory device

USB memory devices are available with a variety of memory capacities to give you more room for storing documents, presentations, music and videos, high resolution photographs, or whatever other files you want to store or move.

You can do the following on your machine using a USB memory device:

  • Scan documents and save them on a USB memory device.

  • Print data stored on a USB memory device.

  • Format the USB memory device.

Your machine supports USB memory devices with FAT16/FAT32 and sector size of 512 bytes.

Check your USB memory device’s file system from your dealer.

You must use only an authorized USB memory device with an A plug type connector.

Use only a USB memory device with metal-shielded connector.

Only use a USB memory device that has obtained compatibility certification; otherwise, the machine might not recognize it.

Insert a USB memory device into the USB memory port on your machine.

[Note]

Do not insert the USB memory device to other ports except the ports which is as shown below the image. If you insert the USB memory to other ports, the machine shows warning message on the display screen.
[Caution]

  • Do not remove the USB memory device while it is in use. The machine warranty does not cover damage caused by a user’s misuse.

  • If your USB memory device has certain features, such as security settings and password settings, your machine may not automatically detect it. For details about these features, see USB memory device’s User’s Guide.

Printing from a USB memory device

You can directly print files stored on a USB memory device. You can print TIFF, JPEG and PRN files. You can select 50 files and print selected the files at once.

USB print option supported file types:

  • PRN: Only files created by provided driver with your machine are compatible. PRN files can be created by selecting the Print to file check box when you print a document. The document will be saved as a PRN file, rather than printed on paper. Only PRN files created in this fashion can be printed directly from USB memory device (see Printing to a file (PRN)).

  • TIFF: TIFF 6.0 Baseline

  • JPEG: JPEG Baseline

  • PDF: PDF 1.7 and below

[Note]

In case of 8bit CMYK JPEG files, Job could be cancelled.

To print a document from a USB memory device:

  1. Insert a USB memory device into the USB memory port on your machine.

    Your machine automatically detects the device and reads data stored on it (see About USB memory device).

    [Note]

    • The machine cannot detect the unformatted USB memory device. Format, and then reinsert the USB memory device into the USB memory port on your machine.

    • The machine could not detect the USB memory device when the machine is in power save mode. Wait until the machine returns to ready mode, and then reinsert the USB memory device into the USB memory port on your machine.

    • The machine has two USB memory ports. When a USB memory is already inserted to one of the port, if you try to insert a USB memory device to another port, the machine cannot detect second one. Remove the USB memory device which is inserted first and then reinsert the USB memory device you want to insert into the USB memory port on your machine.

  2. Press USB from the display screen.

  3. The machine shows all files in the USB memory device.

    Select the file you want to print. You can also select multiple files if you want to print a number of files.

    [Note]

    • If the file is in a folder, press the folder name. Then press Select.

    • If the PDF file you selected is secured with a password, you have to know the password for printing. Enter the password when the machine requires the secure password. If you do not know the password, the print job will be cancelled.

  4. Press USB Print.

  5. Press the appropriate option.

    • Copies: Selects the number of copies.

    • Color Mode: Selects the color mode of copies.

    • Duplex: Selects the machine to print copies on both sides of the paper.

    • Auto fit: Allows you to scale your print job to the selected paper size in the tray regardless of the document size. Select a tray, and press On.

    • Paper Supply: Selects a tray that contains the paper to be printed.

    • Detail: Displays detailed information of the file selected.

    • Delete: When you select multiple files in step 3, you can delete a file from the list, if necessary.

    • Output: Sets the machine’s various output options such as copy output option (see Deciding the form of copy output).

  6. Press OK from the display screen to begin printing.

  7. After printing is completed, you can remove the USB memory device from the machine. Press USB.

  8. Press Safe To Remove USB, and press OK when the confirmation window appears.

  9. Remove the USB memory device.

Managing usb memory

You can delete image files stored on a USB memory device one-by-one or all at once by reformatting the device.

[Warning]

After deleting files or reformatting a USB memory device, files cannot be restored. Confirm that you no longer need the data before deleting it.

Deleting an image file

  1. Insert a USB memory device into the USB memory port on your machine.

  2. Press USB from the display screen.

  3. The machine shows all files in the USB memory device.

    Press the file you want to delete.

    [Note]

    If the file is in a folder, press the folder name. Then press Select.

  4. Press Delete.

  5. Press OK when the confirmation window appears.

  6. Press Close from the display screen.

Formatting a USB memory device

  1. Insert a USB memory device into the USB memory port on your machine.

  2. Press USB from the display screen.

  3. Press USB Format.

  4. Press OK when the confirmation window appears.

  5. Press Close from the display screen.

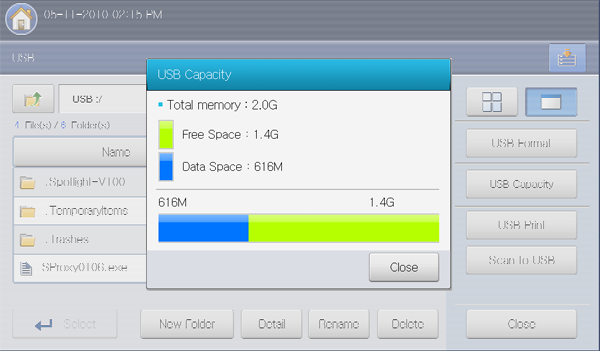

Viewing the USB memory capacity

  1. Insert a USB memory device into the USB memory port on your machine.

  2. Press USB from the display screen.

  3. Press USB Capacity.

    The USB Capacity window appears.

  4. Press Close from the display screen.
